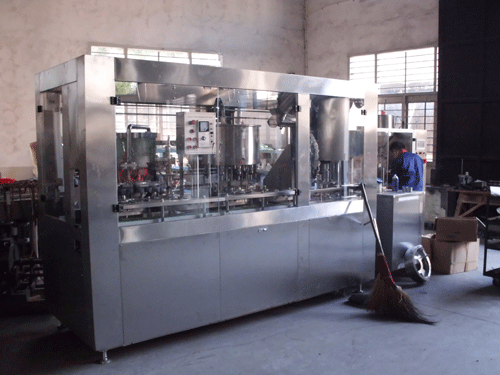

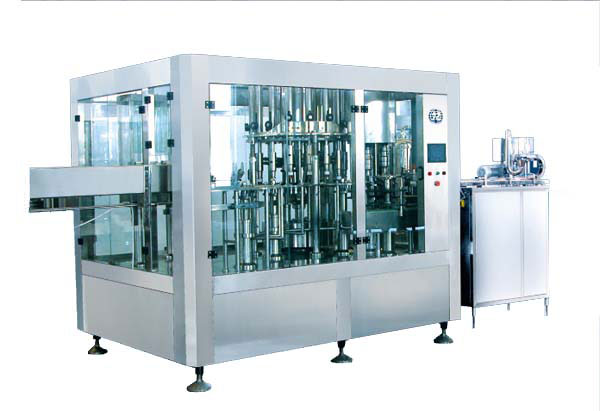

Automatic Bottle washing-filling-capper machine 14-12-6 (14 washing nozzle, 12 filling nozzle, 6 capping head)
Mesin Pencuci Pengisi Penutup Botol dengan model Rotary Monoblock
Memiliki 16 mulut/nosel pencucian, 12 mulut/nosel pengisian, dan 6 Capper Head / Kepala Penutup, yang bekerja untuk menghasilkan kecepatan 3000-4000 botol per jam.
| Capacity (600ml)(bottle/hour) | : 3000-4000 |
| The size of bottle (mm) | : Diameter : 50-100, height : 150-320 |
| Suitable cap shape | : Plastic Screw Cap |
| Water pressure of washing bottle (Mpa) | : 0,18 |
| Water of washing bottle (kg/hour) | : 800 |
| Gas source pressure (Mpa) | : 0,4 |
| Gas Consumption (m3/min) | : 0,3 |
| Total Power (KW) | : 2,20 |
| Total (kg) | : 2500 |
| Dimension (mm) | : 2300x1750x2250 |
Komponen Utama Dalam Mesin
PLC : Mitsubishi FX Series (Japan PLC)
HMI : Weinview / Delta (Taiwan PLC)
Relay / Contact : Schneider (France) / Omron (Japan)
