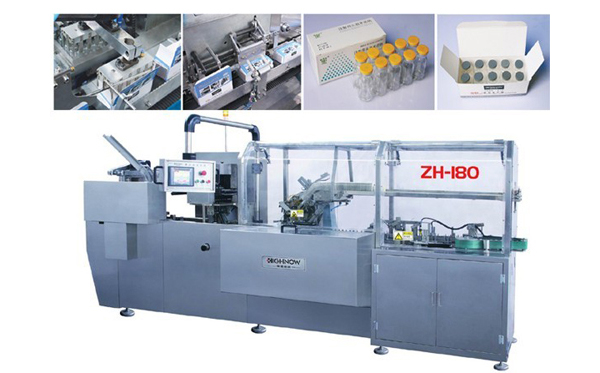

ZH-180 Fully-Automatic Cartoner

This machine is used to take Alu/PVC medical plate or plastic bottle(vitreous bottle)to filling in paper box automatically. It can perform automatically the whole process of folding and conveying of leaflet,paper box forming,batch number printing and box sealing.The machine can also be linked to work with Alu/PVC packing machine, bottle filling machine and transparent film three dimensional packing machine.

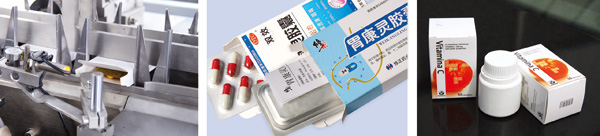

Product Sample

Machine Specification

Runing speed	180~220boxs/min
Size Range of Cardboard Box	≥55×20×12mm
Size Range of Cardboard Box	≤220×120×70mm
Size of unfolded leaflet	90~190×100~260mm
Size of folded leaflet	70~210×20~40mm
Quality of Operation Manual	55~70g/m2
Total Power	2.2Kw
Power	three phase four wire 380V 50HZ
Air-compress	0.6MPa
Air-consumption	3m3/min
Machine dimension	4035×1460×1730mm
weight	3000kg
