DZH-120 Strip Cartoning Packaging machine

lt is suitable for packing pharmaceutical aluminum plastic and other related similar content compact with automatic fish folding,forming.opening and loading,batch number printing as well as sealing tec processes. lt adopts PLC control,photoelectrictry supervision to coordinate with enery parts. once something unexpected happens when its operating. it can stop and display the reasons automatically. it is comvenient to solve the troubles in time. this machine can be used separaely, and also can used with other blister packing machines.

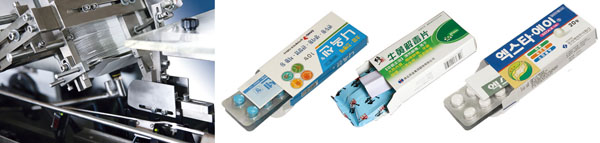

Product Sample

cartoning-machine

Machine Specification

Electric power AC380V three-phrase and five-wire 50HZ total power 1.5kw
Production capacity Max.speed120 box/min
Volume of consumption

20m3/h(pressure 0.5-0.7 Mpa)

Packing material Box:250-300g/㎡(according to its dimensions to confirm)
Specifications:max.Size(L*H*W)170*80*50mm
Min.Size(L*H*W)70*20*15mm
Leaflet Paper weight:55-65g/㎡
Specifications:max.Size(L*W)260*190mm
Min.Size(L*W)100*100mm
Overall dimension(mm) 3300*1050*1890
Weight Approximately1.8 tons

strip-packaging
