DZH-120 Bottle Box Cartoning Packaging machine

It is suitable for packing pharmaceutical aluminum plastic and other related similar content compact with automatic fish folding,forming,opening and loading,batch number printing as well as sealing tec processes.It adopts PLC control,photoelectrictry supervision to coordinate with every parts.Once something unexpected happens when its operating. It can stop and display the reasons automatically.It is convenient to solve the troubles in time.This machine can be used separately,and also can used with other blister packing machines.

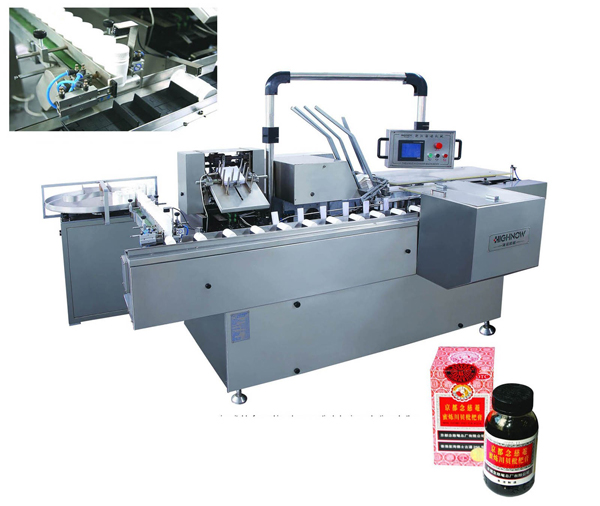

Product Sample and Machine Picture


Machine Specification

Electric power

AC 380V three phase and five-wire 50Hz
total power 1.5kw

Production capacity

Rotation speed 50-75 box/min
speed of folding machine 50-75 box/min

Volume of consumption

20m3/h (pressure 0.5-0.7Mpa)

Packing material

Box:250-300g/m2(according to dimension to confirm)

Specifications :max .size (L×W×H)200×80×55mm

Min.size (L×W×H) 50×20×15mm


Paper weight 55-65g/m2

Specification :max size (L×W)260×190mm

Min. size (L×W) 100×100mm

Overall dimension (mm)



Approximately 1.2 tons
