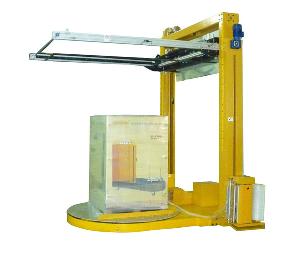

CP-207CR Automatic Pallet Wrapper with Top Sheet Dispenser

CP-207CR Automatic is fitted with automatic film apply/cut unit, top sheet dispensing unit and remote control device. An operator is able to start and stop the machine to achieve wrapping or wrapping with covering the pallets top while operating a forklift. CP207CR is ideal machine for superior stretch wrapping.

>> Two working mode choices: wrapping, or wrapping with top sheet dispensing.
>> PLC controlled, easy wrapping program setting.
>> Automatic stretch film clamp & cut, pneumatically driven.
>> Remote control device fitted. Machine start on control panel or remote controller.
>> Automatic film welding device for perfect film tail handling.
>> Film tension, turntable speed & carriage speed adjustable on panel.
>> Power stretch film carriage, ratio 250%, film savings.
>> Automatic wrapping according to pre-set parameters. Manual wrap mode as an option.
>> Auto height detection, machine home position, forklift sockets for easy moving.
>> Multiple safety protection measures for ensured operator safety.

Turntable diameter: 1800mm
Wrapping height: 2100mm
Loading weight: 2000kgs
Packing speed: 20-30 pallets/hour
Turntable speed: 3-15rpm, turntable soft start & soft stop
Turntable Height: 136mm
Air Pressure: 0.4-0.7Mpa
Top dispensing unit lifting speed: 5m/min
Top sheet pulling speed: 12m/min
Top sheet size: Width 1700mm,Length variable
Cut method: instant heater
Wrapping settings: wrapping cycles /top wraps /bottom wraps /overwrap
Carriage speed: 5m/min max
Power: 3PH 380VAC, 50/60Hz, 20A, 3kw
Machine Dimensions: 2960 x 2625 x 3100
Machine Weight: 1500kg
Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 18kgs
Top Sheet type: PE film, thickness 50-75microns, width1600-1800mm, net weight 120kgs max

Please contact or email us for need a quotation and detail information
