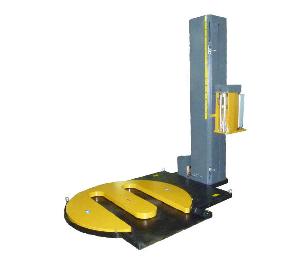

CP-06M Pallet Wrapper with M-type Turntable
Stretch wrapping machines are used to wrap film around a loaded pallet. Film provides extra support during transportation and storage to protect them from dust, moisture or damage. It's been widely used in industries such as glassware, tools, electric electronic, paper, pottery, food beverage, etc.
PLC controlled, easy wrapping program setting.
Both one touch automatic programs and manual run are available.
Film tension, turntable speed & carriage speed adjustable on panel.
Turntable stop start & stop.
Turntable home position.
Automatic detection of pallet height by photocell.
250% power stretch, film savings.
Open type carriage for easy film threading.
Carriage driven by dual chain system.
Wrap speed: 30 ¨C 40 pallets/hour
Turntable diameter: 1650mm
Turntable speed: 3 - 15rpm
Max load weight: 1000kgs
Wrapping height: 2100mm
Turntable height: 82mm
Wrapping settings: wrap cycles /top wraps /bottom wraps /overwrap
Carriage speed: 5 meters/min max
Turntable motor: 0.75kw
Pre-stretch motor: 0.2kw
Carriage lifter motor: 0.37kw
Power: 1PH 220VAC, 50/60Hz
Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 18kgs
Options:
1. Turntable diameter 1500mm, 1800mm, or 2000mm
2. Wrapping height 2400mm or 2600mm
3. Access ramp for loading
4. Turntable could be M-shaped
5. Top platen driven pneumatically for light products
6. Ring bearing structure turntable for extra heavy loads.
Turntable diameter: 1650mm
Turntable speed: 3 - 15rpm
Max load weight: 1000kgs
Wrapping height: 2100mm
Turntable height: 82mm
Wrapping settings: wrap cycles /top wraps /bottom wraps /overwrap
Carriage speed: 5 meters/min max
Turntable motor: 0.75kw
Pre-stretch motor: 0.2kw
Carriage lifter motor: 0.37kw
Power: 1PH 220VAC, 50/60Hz
Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 18kgs
Options:
1. Turntable diameter 1500mm, 1800mm, or 2000mm
2. Wrapping height 2400mm or 2600mm
3. Access ramp for loading
4. Turntable could be M-shaped
5. Top platen driven pneumatically for light products
6. Ring bearing structure turntable for extra heavy loads.
Please Contact Us for Detail Information
