CHM-GL Series SEMI AUTOMATIC PISTON FILLING MACHINE - High Accurate Filling

Features:

This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.

1.Reasonable design, compact shape, simple operation, partly adopt the Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.

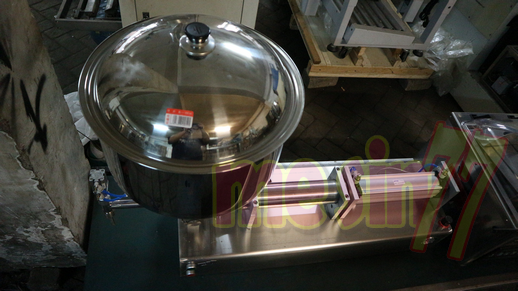

CHM-GL Series series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Taiwan AirTac the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.

Machine model

CHM-GL1

CHM-GL4

CHM-GL8

CHM-GL10

CHM-GL5

CHM-GL6

Filling speed

10-35n/min(take water for example)

Filling range

10-100ml

30-300ml

50-500ml

100-1000ml

300-3000ml

500-5000ml

Air pressure

0.4~0.6mpa

Filling error

±1%

Machine size

806(L) × 180(W) ×690(H)mm

880(L) ×230(W) ×665(H)mm

880(L) × 230(W) ×665(H)mm

1065 (L) ×230(W) ×665(H)mm

1250(L) ×400(W) ×300(H)mm

1390(L) ×420(W) ×380(H)6mm

Machine weight

42 Kg

45Kg

48Kg

52Kg

64 Kg

86 Kg
